TMAX Box allows you to convert UFS/MT/Cyclone/ATF, UST PRO/NS PRO cables to be used with UFS/MT/CYCLONE/ATF, UST PRO/NS PRO Boxes. TMAX includes 6 kinds of resistor value for you to select to change the BSI value of your FBus cables. It is the ultimate adaptor converter.

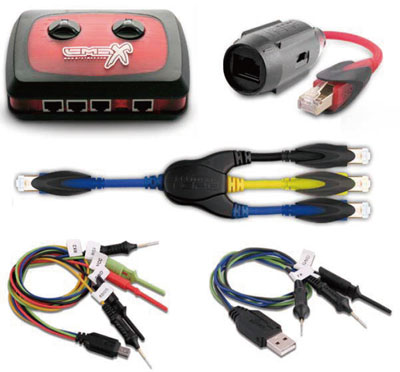

TMAX cables description:

adaptor - supports all GPG UFC V2 small cables

3in1 cable - one side is RJ48 which connects boxes to TMAX, the other 2 RJ45 is for UFS/Cyclone Box, the RJ48 is for MT-Box

mini cable - Your TMAX can be used also as a main UFC module. This cable will be needed to put phone into LOCAL/TEST/NORLMAL MODE

RX TX cable - which includes 3 TP cables RX, TX, GND for mobile unlock.



DOWNLOAD USER MANUAL HERE

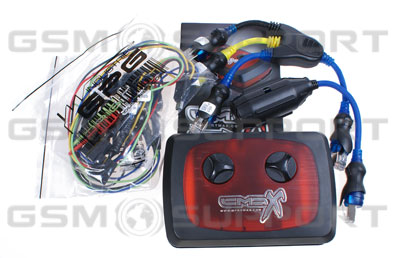

Complete contains:

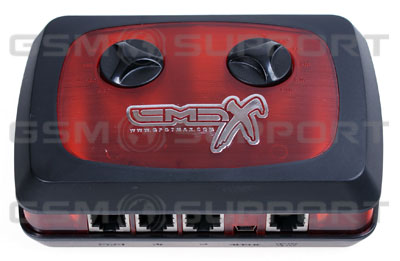

- TMAX interface box
- cables set
