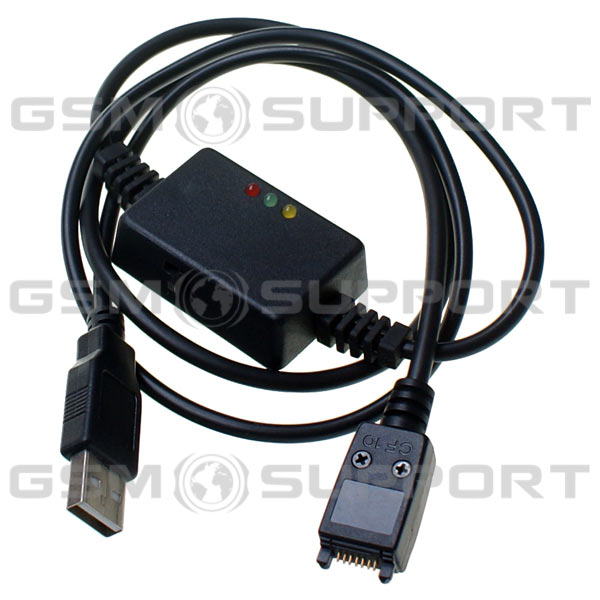

This is a USB cable compatible with old DLR / DLR-3P Nokia cable, but with built-in special USB converter. Original Nokia DLR-3P cable had only RS232 COM connector, but we decided to add a USB funciontality. We also added FBUS and MBUS mode useful to service such old phone as Nokia 5110 / 6110 / 6310 / 6310i and others with compatible socket.

This cable works with all operating systems supported by FT232 chip - please check for available drivers on http://www.ftdichip.com/Drivers/VCP.htm

Cable is installed as a virtual COM port, has 3 modes: DLR/DLR-3P (model), MBUS and FBUS. First allows to connect Nokia 6310 / 6310i in DLR / DLR-3P mode and others can be used with Logomanager.
Mode can be chosen using 3-position switch and additional 3 LEDs show transmission in certain model.

• It is a unique cable never released by Nokiaj, but compatible with their products
• It has funcionality of 3 different cables: DLR (DLR-3P), MBUS and FBUS
• DLR-3P/DLR-3 mode is available for Nokia 6310 / 6310i
• FBUS and MBUS modes are available for Nokia 5110 5130 5146 5165 5190 6110 6130 6150 6150e 6190
• Has 3 LEDs show data transmission

Example of cable funcionality using special testing software
