Universal Box Blue

UNIVERSAL BOX BLUE is a next generation high-end simlock unlock hardware with 60 connection cables for using in GSM services. Our hardware has finaly passed all Level2 factory test procedures and is ready for sale on worldwide market. At the moment this box works with over 300 cellphones and has option to upgrade it with new mobile phone's cables and other accessories. It's a great option for people who don't have much time for searching other devices. Added 4 blinking LEDs for box (power, RX, TX) and Flasher working status. Now you will also receive special set of programs called Universal Simlock Remover which is all-in-one collection of unlocking software.

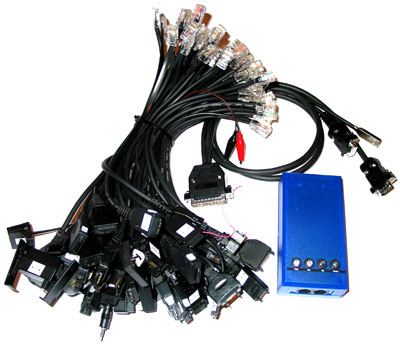

Front view of UNIVERSAL BOX BLUE
For singalization of current work status we built-in four leds.
Two RJ-sockets. First is to connect wires for Dejan flasher mode, second is for f/mbus transmission.

Back View of UNIVERSAL BOX BLUE
Special wide socket for data transmission
Power supply socket - this is an option - our box can work without power supply, but for your convinience we added cables to take power source from USB port.
CABLES SET
Unlock, data, flash, repair, change language - available thanks to this cables set.

CONNECTORS
As You can see it is made in professional technology. Well fitted and well solved.
Each connector has sticker with phone name, so it is easy to use correct one.


MAIN LEAD
One main cable is capable to support data transmission and power source.


EASY CONNECTION
Just choose correct extension cable and connect it to phone.

boxbluepcb_mid
<- Click here to ZOOM

PROFESSIONAL SMD
PCB board is designed in SMD technology. Thanks to this our device can work very stable for long time.
PCB and electronics part are protected agains humidity by special lacquer.



WARRANTY
We give 12 months warranty for our UNIVERSAL BOX BLUE. Please see our sales policy for more details.

NOW ONLY WITH UNIVERSAL BOX BLUE YOU WILL RECEIVE FREE APPLICATION CALLED 'UNIVERSAL SIMLOCK REMOVER' WHICH CONTAINS WORKING AND TESTED SOFTWARE FOR MANY MOBILE PHONES.
BESIDES EVERY CUSTOMER WILL GET FREE, UNLIMITED UPDATES OF U.S.R.
Please download the newest USR software for your UNIVERSAL BOX BLUE on SIMLOCK.GSM-SUPPORT.NET

Those 60 cables included with UNIVERSAL BOX BLUE are compatible with the following models:

No.Type of the cableSupported modelsOperation
1.Alcatel DBBE1: Easy/Max/Club/Gum
BE3: all models
BE4: all models
BE5: all models
UNLOCK/FLASH
2.Alcatel 320 XG1320UNLOCK/FLASH
3.Alcatel OT-311310 311UNLOCK/FLASH
4.Alcatel OT-511511 512UNLOCK/FLASH
5.Alcatel OT-525525UNLOCK/FLASH
6.Alcatel BH4-535535 735UNLOCK/FLASH
7.Alcatel OT-715715UNLOCK/FLASH
8.Alcatel OT-835835UNLOCK/FLASH
9.Ericsson T2xR250 R310s R320 A2618s A2628s T20 T20s(e) T29 T20 WorldUNLOCK/FLASH
10.LG 510LG 510UNLOCK
11.LG B1200LG B1200UNLOCK
12.Maxon EpsilonMaxon EpsilonUNLOCK
13.Mitsubishi M320 FLASHMitsubishi MT560 (M320)AND Alcatel 531FLASH
14.Mitsubishi M320 UNLOCKMitsubishi MT560 (M320)AND Alcatel 531UNLOCK
15.Mitsubishi Aria UNLMitsubishi Aria / Aria WAPFLASH
16.Mitsubishi Aria FLMitsubishi Aria / Aria WAPUNLOCK
17.Mitsubishi Astral FlashMitsubishi Trium Geo Galaxy AstralFLASH
18.Mitsubishi Astral UNLMitsubishi Trium Geo Galaxy AstralUNLOCK
19.Mitsubishi Mars FlashMars Neptune EclipseFLASH
20.Mitsubishi Mars UNLMars/Neptune/EclipseUNLOCK
21.Motorola E365E360 E365UNLOCK/FLASH
22.Motorola T191Motorola T190 T191 C200 C201 C205 C300UNLOCK/FLASH
23.Motorola T205T205 T2688UNLOCK/FLASH
24.Motorola V60V60 V66UNLOCK/FLASH
25.NEC N2xiNEC N21i N223i N22iUNLOCK/FLASH
26.Nokia 32103210UNLOCK/FLASH
27.Nokia 33103310 3330 3410 5510UNLOCK/FLASH
28.Nokia 51105110 5120 5130 5190 5210
6110 6130 6150 6150e 6190 6210 6250 7110		UNLOCK/FLASH
29.Nokia 82102100 3610 5510 8210 8250 8810 8850 8890UNLOCK/FLASH
30.Nokia 91109110 9210UNLOCK/FLASH
31.Panasonic G60Panasonic G60UNLOCK/FLASH
32.Panasonic GD35Panasonic GD35UNLOCK/FLASH
33.Panasonic GD55Panasonic GD55FLASH
34.Panasonic GD90Panasonic GD30 GD50 GD70 GD90UNLOCK/FLASH
35.Panasonic GD92Panasonic GD52 53 92 93 67 68 87 88 GU87 GU88 GD87eUNLOCK/FLASH
36.Panasonic X70Panasonic X70UNLOCK/FLASH
37.Philips 530530UNLOCK/FLASH
38.Philips 630630UNLOCK/FLASH
39.Philips FisioFisio 120 121 311 620 625 820 822 825UNLOCK/FLASH
40.Philips SavvyTCD128 (S4,B4,H4)/TCD138 (SM,BC)/TCD168 (HT)/TCD169 (CT) and all other Savvy versions (for example 188)
Azalis TCD238 / Xenium TCD 998 / OZEO / OZEO WAP		UNLOCK/FLASH
41.Sagem 9xx912 922 929 932 939 1126 3026UNLOCK
42.Samsung SGH-600SGH-600 800 2100 2200 2400UNLOCK
43.Samsung R2xx A300 A400 UNLOCKC100 R200 R208 R210 R220 R225 A200 A288 A300 A388 A400 A488 Q100 A800 Q105 Q108 Q200 Q205 Q208 Q300 Q308 N100 N105 N188 N200 N288 N300 N400 N500 N600 N620 N625 N628 T100 T108 T200 T208 T300 T400 T408 T410 T500 T508 T700 V100 V200 V205 V208UNLOCK
44.Samsung A300 A400 FLASHA300 A388 A400 A488FLASH
45.Samsung R200 FLASHA200 A288 R200 R210 R220 R2xxFLASH
46.Samsung A100 A110 UNLOCKA100 A110/A188UNLOCK
47.Samsung D500D500 D500eUNLOCK/FLASH
48.Samsung E700X100 S500 E700 X600 E100UNLOCK/FLASH
49.Samsung S100 S108 UNLOCK S100 S108UNLOCK
50.Sendo P200S200 P200UNLOCK/FLASH (flash software is not free)
51.Sharp GX10Sharp GX10 GX10i GX11 GX12 GX13 GX20UNLOCK/FLASH
52.Sharp GX20Sharp GX20UNLOCK/FLASH
53.Sharp GX30Sharp GX30 GX30i TM100 GX-30 TM-100UNLOCK/FLASH
54.Siemens C62Siemens C62UNLOCK/FLASH
55.Siemens x35Siemens C25 C28 S25 S35i C35i M35i A35 A36 SL45 x45 series/M50/MT50/A50UNLOCK/FLASH
56.Siemens x55Siemens 218 A52 A55 A56 A60 C55 C56 C60 C62 C65 CF62 CT56 M55 MC60 MT55 S55 S56 S57 S65 SL5C SL55 SL56UNLOCK/FLASH
57.Siemens ST55Siemens ST55 ST60UNLOCK/FLASH
58.Sony J5Sony CMD-J5 J6 J7 J70UNLOCK/FLASH
59.Toshiba TS21TS21 TS21UNLOCK/FLASH
60.VK207iVK207iUNLOCK
We reserve a right to change type of cables included in set without further notice. Please contact us to get actual list of cables. Anyway you can be sure you will get at least 60 pcs cables in set or more :)

CLICK HERE TO ORDER OPTIONAL CABLES !

Requirements:
  • PC desktop or laptop computer with RS232 COM Port and USB
  • LPT parallel port for Nokia Flasher (not necessary if you do not want to use Nokia Flasher)
  • USB port OR 9V optional adapter
  • Windows 98 SE operating system

    UNIVERSAL BOX BLUE:
  • UNIVERSAL BOX BLUE
  • 60 cables for connecting phone with BOX
  • powered from USB port of PC computer
  • special RS232/LPT cable to connect box to PC
  • user manual
  • 7 CDs with GSM software FREE !




    • Printer friendly version PDF version
    box, cable, universal, unlock, rs232, com, usb

    We offer discounts for high quantity/value orders. Please contact us if you are interested in wholesale purchase.
