Unifbus DITS UFC4 28in1 :: Home » Cables for boxes » DITS UFC4

Unifbus DITS UFC4 28in1

Unifbus DITS UFC4 28in1
Available soon
You have to be logged in to gain access to notice options
Enlarge
Price: 68.29 USD
DITS UFC4 is dedicated for MT-BOX/UB and JAF/HWKuFs users thanks to COMBO PRO cables and main module.
It is a set of 28 adapters, 1 holder/connection used for flashing, unlocking all BB5 phones. Advantage over other solution are fast and easy change of adapters to main modules - also you can buy new ones without problems and at low prices instead of buying full module. For sure when new phone came on the market you did not have a cable. Thanks to our unifbus adapters you can perform any service operation without problems until factory makes a new cable. Set supports variety of all BB5/DCT4/SAM/ALC/ZTE/LG and even DCT3 phones (resistors 3.3K, 5.1K, 7.5K, 10K, 15K. Now you will also not have a problem to enter phone into local mode.




What is new in UFC4 ?

  • Added innovative, changeable adapters with telescope pins - durable and easy to connect
  • Allowed easy disassembly of adapter for damaged telescope
  • Old GPGUFC V2 + holder replaced by one modern, multifunctional and integrated 2in1 holder
  • Added box type selector: MT (MT-Box), CYC (Cyclone), UFS
  • Possibility to use as JTAG adapter

General advantages of using DITS UFC4:

  • In case you get a phone with damaged firmware the only way to repair it is using a special service cable
  • If new phone model comes on market - you will be able to flash and repair it
  • You will save time, money and space on your service desk. So far you had to buy new cable for new model. Besides it is not so easy to find right cable if you have over 100 pcs to different models.
  • This UniFbus cable gives you a possibility to service phone right after it comes on the market
  • You save money - you do not need to buy new cables any more
  • You save space on your service desk - just 28 adapters for Nokia BB5 and other phones
  • You save time - you can easily and quickly find right adapter
  • Servicing of phones will be more efficient
  • High quality and resistor switch (3.3K, 5.1K, 7.5K, 10K and 15K) will allow to easily enter phone into local mode
  • Unifbus cable is compatible with boxes: JAF, HWKUFS, Cyclone (adapter needed), UFS3 Tornado +HWK, Universal box, MT-Box and all similar
  • Support for RJ48 10-pin socket in MT-Box/GTI with TX2 and VPP lines

List of slave jigs and supported phone models:
  • Cable type (1) BB5-A
    5310XM, 5500, 6120C, 6151, 6233, 6234, 6270, 6280, 6680, 7370, E50, E51, E60, E61, E62, E90, N82, N95, N95 8GB, 5220XM, 7310S, 7210S, 6121C, 6122C, 5320D, 6124C, 6681, 7373, 6650D, 6267, 6263, N71, 3600S, 7610S, 6350, 2690, 2730, N86, N85, E63, E71, 6288
  • Cable type (2) BB5-B
    3109C, 3110C, 3250, 3500C, 5200, 5300, 5610XM, 5700, 6110N, 6300, 6300i, 6301, 6500C, 6500S, 6600F, 6600S, 7390, 7500, 7900D, 8600, N80, 6600i
  • Cable type (3) BB5-C
    3555, 3610F, 6085, 6086, 6125, 6126, 6131, 6133, 6136, 6290, 6555, 6630, 8800E, E65, E70, N70, N72, N73, N76, N77, N81, N91, N92, N93, N93i, 3208C, 6208C, 3120C, 7510, N96, E75, N97, N97mini, N900, 6790S, 5130, 5730XM, 6760S, 2700C, 5132
  • Cable type (4) BB5-D
    E61i
  • Cable type (5) BB5-E
    N75, N90, 8800, 8801
  • Cable type (6) DCT4-F
    2112, 2115, 2116, 2255, 2650, 3100, 3105, 3108, 3120, 3300, 6100, 6101, 6103, 6108, 6670, 6235, 6255, 6600, 7610, QD
  • Cable type (7) DCT4-G
    2600C, 2630, 2760, 3200, 3220, 3600, 3650, 3660, 5140, 6020, 6021, 6060, 6111, 6170, 6220, 6225, 6610, 6620, 6820, 7200, 7210, 7250, 7260, 7360, 7600, 9300, N-GAGE, 2330C, 8910, 1680C, 5000, 1202, 7070, 2720, 6230, 5100, 2680C, 7100S, 2220, 6800, 2323C, 5320C, 1681C, 1661, 1662, 5030, 1203
  • Cable type (8) DCT4-H
    1100, 1101, 1110, 1200, 1208, 1600, 1650, 2300, 2310, 2600, 2626, 6030, 6031, 7710, 9500, 6650
  • Cable type (9) DCT4-I
    1220, 1260, 2220, 2260, 3320, 3360, 3520, 6510, 8310, 1616, 1800, 3560
  • Cable type (10) BB5-J
    3720C, 6303C
  • Cable type (11) BB5-K
    5230XM, 5530XM, 5800XM, 6210N, 6220C, E66, N78, N79, X6, 5233XM, 6210C
  • Cable type (12) BB5-L
    E52, E55, E72, 5630D, 6260S, 6700C, 6710S, 6720C, 6730C, 6750Mural, C5
  • Cable type (13) SAM-C140
    C140, C160, C161, C166, C188, C260
  • Cable type (14) SAM-C160
    B139, B239, B259, B399, F302, F309, S189, S269, S279, S299, S339, G810, I8510, I8910
  • Cable type (15) ALC-C701
    C Series, V Series
  • Cable type (16) ZTE-A35
    A Series, V Series
  • Cable type (17) LG GW300
    GD510, GW520, GW300
  • Cable type (18) BB5-M
    X3, 7230, 3710, 5330
  • Cable type (19) BB5-N
    6700S, C5-03
  • Cable type (20) BB5-O
    C-6
  • Cable type (21) BB5-P
    6303Ci
  • Cable type (22) BB5-Q
    X3-02
  • Cable type (23) BB5-R
    C-7
  • Cable type (24) BB5-S
    C6-01
  • Cable type (25) BB5-T
    C2-01, X3, 5330, 3710, 7230
  • Cable type (26) BB5-W
    300, 303
  • Cable type (27) SE-BM
    SonyEricsson X8, X10i, E10, X10, U20, E15 and others
  • Cable type (28) HWK
    For HWK repair

List of cables:
  • 1. GND CABLE
  • 2. UFS MAIN
  • 3. UNIVERSAL MAIN
  • 4. EXTERNAL USB POWER CABLE +5V
  • 5. SE 3IN1
  • 6. ALL IN 1

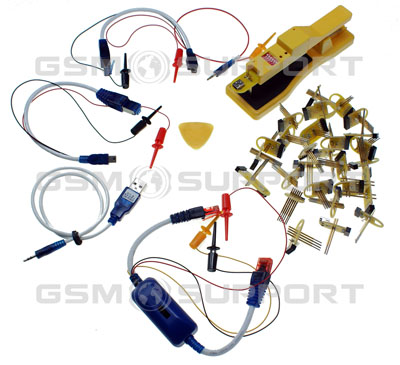

Set includes:
  • Main unit with holder and resistor switch.
  • 28 phone adapters
  • 6 types of cable
